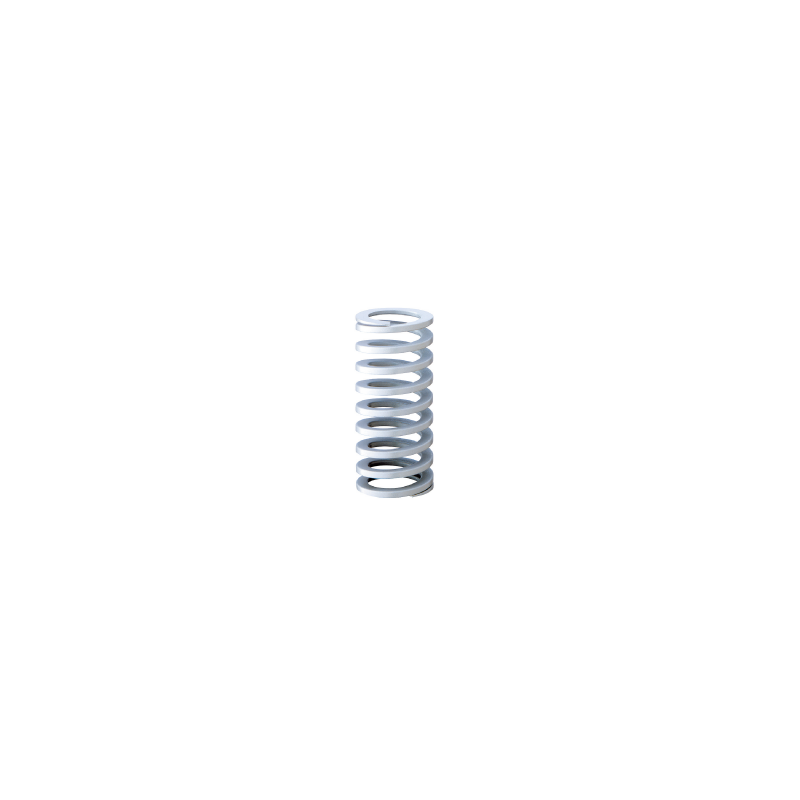

TR SERIES BIG STROKE DIE SPRINGS TR46X60

TR46X60
TR SERIES BIG STROKE DIE SPRINGS
€91.56
VAT not included Maximum 8 working days
Quantity
This product is in stock

The minimum purchase order quantity for the product is 14.

Compare



Download PDF
Description

TR Series springs for tools and/or dies with deflection up to 50% of the free length.

Temperature range -30ºC to 150ºC.

Ivory color electrophoretic coating.

Cycle guarantee at 40% deflection: 1,000,000

Product Details
TR46X60

Data sheet

STROKE 40%
24.0
FORCE AT 40%
490.3
FREE LENGTH
60
OUTSIDE DIAMETER
46
INSIDE DIAMETER
32
SPRING RATE (K)
20.34
STROKE 45%
27.0
STROKE 50%
30.0
FORCE AT 45%
549.2
FORCE AT 50%
608
