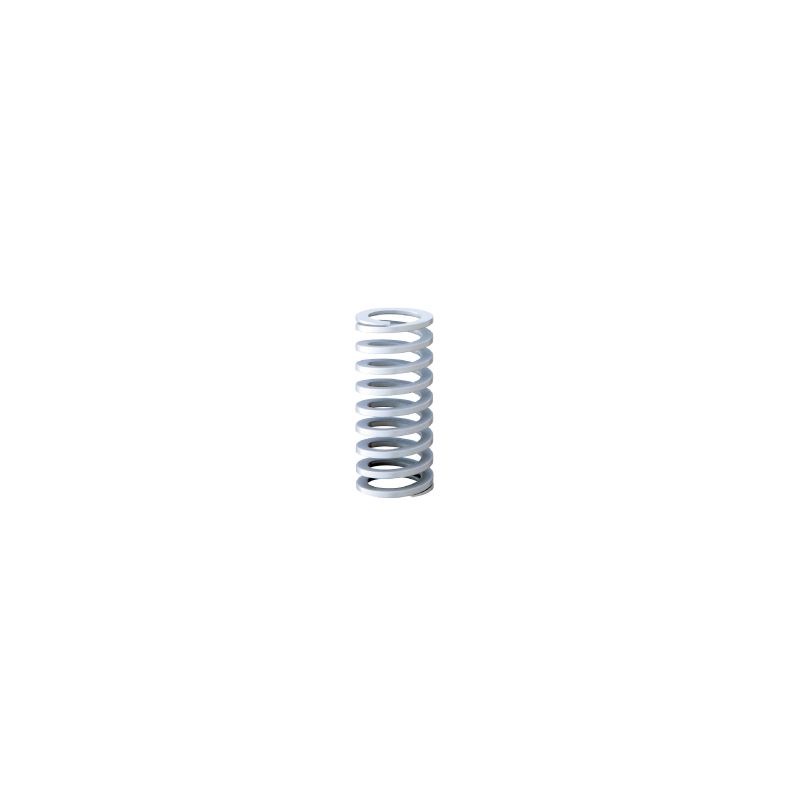

TR SERIES BIG STROKE DIE SPRINGS TR39X125

TR39X125
TR SERIES BIG STROKE DIE SPRINGS
€88.56
VAT not included Maximum 8 working days
Quantity
This product is in stock

The minimum purchase order quantity for the product is 12.

Compare



Download PDF
Description

TR Series springs for tools and/or dies with deflection up to 50% of the free length.

Temperature range -30ºC to 150ºC.

Ivory color electrophoretic coating.

Cycle guarantee at 40% deflection: 1,000,000

Product Details
TR39X125

Data sheet

STROKE 40%
50.0
FORCE AT 40%
431.5
FREE LENGTH
125
OUTSIDE DIAMETER
39
INSIDE DIAMETER
26
SPRING RATE (K)
8.72
STROKE 45%
56.3
STROKE 50%
62.5
FORCE AT 45%
490.3
FORCE AT 50%
539.4
